Atlfast::AODNavigationImp Class Reference

#include <AODNavigationImp.h>

Inheritance diagram for Atlfast::AODNavigationImp:

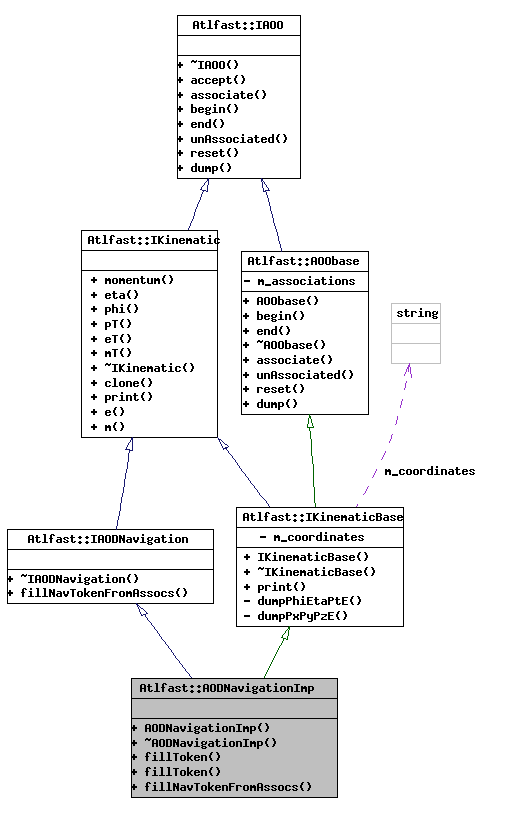

[legend]Collaboration diagram for Atlfast::AODNavigationImp:


Public Member Functions
	AODNavigationImp ()
virtual	~AODNavigationImp ()
virtual void	fillToken (INavigationToken &) const
virtual void	fillToken (INavigationToken &, const boost::any &) const
virtual void	fillNavTokenFromAssocs (INavigationToken &) const
virtual HepLorentzVector	momentum () const=0
virtual double	eta () const=0
virtual double	phi () const=0
virtual double	pT () const=0
virtual double	eT () const=0
virtual double	mT () const=0
virtual IKinematic *	clone () const=0
virtual void	print (const std::string &, std::string s="") const =0
virtual double	e () const
virtual double	m () const
virtual void	accept (IAOOvisitor *) const =0
	to be implemented by the concrete classes
virtual void	associate (const IAOO *otherEntity)=0
	store any object with IAOO above it the inheritance heirarchy
virtual std::vector< const IAOO * >::const_iterator	begin () const=0
	iterators for the store.
virtual std::vector< const IAOO * >::const_iterator	end () const=0
virtual bool	unAssociated () const=0
	A quick way to find out whether there are any associations at a ll.
virtual void	reset ()=0
	zero the container
virtual void	dump (const std::string &s) const =0
	dump out debug info
Protected Member Functions
virtual void	print (const std::string &, std::string s="") const
virtual void	associate (const IAOO *otherEntity)
	store any object with IAOO above it the inheritance heirarchy
virtual std::vector< const IAOO * >::const_iterator	begin () const
	iterators for the store.
virtual std::vector< const IAOO * >::const_iterator	end () const
virtual bool	unAssociated () const
	A quick way to find out whether there are any associations at a ll.
virtual void	reset ()
	zero the container
virtual void	dump (const std::string &) const
	dump out debug info

Detailed Description

formatted output of collection of Reconstructed Particles from the TES for debugging purposes.

Definition at line 39 of file AODNavigationImp.h.

Constructor & Destructor Documentation

Atlfast::AODNavigationImp::AODNavigationImp ( ) [inline]

Definition at line 44 of file AODNavigationImp.h.

00044 : IKinematicBase(){}

virtual Atlfast::AODNavigationImp::~AODNavigationImp ( ) [inline, virtual]

Definition at line 45 of file AODNavigationImp.h.

00045 {};

Member Function Documentation

virtual void Atlfast::AODNavigationImp::fillToken ( INavigationToken & ) const [inline, virtual]

Reimplemented in Atlfast::Cluster, and Atlfast::Jet.

Definition at line 48 of file AODNavigationImp.h.

00048 { };

virtual void Atlfast::AODNavigationImp::fillToken	(	INavigationToken &	,
		const boost::any &
	)			const `[inline, virtual]`

Reimplemented in Atlfast::Cluster, and Atlfast::Jet.

Definition at line 49 of file AODNavigationImp.h.

00049 { };

void Atlfast::AODNavigationImp::fillNavTokenFromAssocs ( INavigationToken & ) const [virtual]

Implements Atlfast::IAODNavigation.

Definition at line 14 of file AODNavigationImp.cxx.

00014                                                                             {
00015     NavigationToken<I4Momentum>* i4Token =
00016       dynamic_cast< NavigationToken<I4Momentum>* >(&token);
00017     if ( i4Token == 0 ) return;
00018
00019     TypeVisitor typeVisitor = SimpleAssocsDispatcher(this, TypeVisitor());
00020
00021     std::vector<const I4Momentum*> i4s = typeVisitor.i4momenta();
00022     std::vector<const I4Momentum*>::const_iterator iter = i4s.begin();
00023     for(;iter!= i4s.end(); ++iter){i4Token->setObject(*iter);}
00024   }

virtual HepLorentzVector Atlfast::IKinematic::momentum ( ) const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::eta ( ) const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::phi ( ) const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::pT ( ) const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::eT ( ) const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::mT ( ) const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual IKinematic* Atlfast::IKinematic::clone ( ) const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, Atlfast::Track, and Atlfast::TwoCptCell.

virtual void Atlfast::IKinematic::print	(	const std::string &	,
		std::string	s = `""`
	)			const `[pure virtual, inherited]`

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::IKinematicBase, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::Track, and Atlfast::TwoCptCell.

virtual double Atlfast::IKinematic::e ( ) const [inline, virtual, inherited]

Reimplemented in Atlfast::Jet.

Definition at line 75 of file IKinematic.h.

00075 {return this->momentum().e();}

virtual double Atlfast::IKinematic::m ( ) const [inline, virtual, inherited]

Definition at line 76 of file IKinematic.h.

00076 {return this->momentum().m();}

virtual void Atlfast::IAOO::accept ( IAOOvisitor * ) const [pure virtual, inherited]

to be implemented by the concrete classes

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, Atlfast::Track, and Atlfast::TwoCptCell.

virtual void Atlfast::IAOO::associate ( const IAOO * otherEntity ) [pure virtual, inherited]

store any object with IAOO above it the inheritance heirarchy

Implemented in Atlfast::AOObase.

virtual std::vector<const IAOO*>::const_iterator Atlfast::IAOO::begin ( ) const [pure virtual, inherited]

iterators for the store.

Implemented in Atlfast::AOObase.

virtual std::vector<const IAOO*>::const_iterator Atlfast::IAOO::end ( ) const [pure virtual, inherited]

Implemented in Atlfast::AOObase.

virtual bool Atlfast::IAOO::unAssociated ( ) const [pure virtual, inherited]

A quick way to find out whether there are any associations at a ll.

Implemented in Atlfast::AOObase.

virtual void Atlfast::IAOO::reset ( ) [pure virtual, inherited]

zero the container

Implemented in Atlfast::AOObase.

virtual void Atlfast::IAOO::dump ( const std::string & s ) const [pure virtual, inherited]

dump out debug info

Implemented in Atlfast::AOObase.

void Atlfast::IKinematicBase::print	(	const std::string &	,
		std::string	s = `""`
	)			const `[virtual, inherited]`

Dump method.

Implements Atlfast::IKinematic.

Reimplemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::Track, and Atlfast::TwoCptCell.

Definition at line 18 of file IKinematicBase.cxx.

00018                                                                    {
00019
00020     AOObase::dump(s);
00021
00022     if (coor == "PhiEtaPtE"){
00023       this->dumpPhiEtaPtE(s);
00024     }else{
00025       this->dumpPxPyPzE(s);
00026     }
00027   }

void Atlfast::AOObase::associate ( const IAOO * otherEntity ) [virtual, inherited]

store any object with IAOO above it the inheritance heirarchy

Implements Atlfast::IAOO.

Definition at line 18 of file AOObase.cxx.

00018                                            {
00019     m_associations.push_back( other ) ;
00020   }

std::vector< const IAOO * >::const_iterator Atlfast::AOObase::begin ( ) const [virtual, inherited]

iterators for the store.

Implements Atlfast::IAOO.

Definition at line 10 of file AOObase.cxx.

00010                                                            {
00011     return m_associations.begin();
00012   }

std::vector< const IAOO * >::const_iterator Atlfast::AOObase::end ( ) const [virtual, inherited]

Implements Atlfast::IAOO.

Definition at line 14 of file AOObase.cxx.

00014                                                            {
00015     return m_associations.end();
00016   }

virtual bool Atlfast::AOObase::unAssociated ( ) const [inline, virtual, inherited]

A quick way to find out whether there are any associations at a ll.

Implements Atlfast::IAOO.

Definition at line 31 of file AOObase.h.

00031 { return m_associations.empty() ; }

virtual void Atlfast::AOObase::reset ( ) [inline, virtual, inherited]

zero the container

Implements Atlfast::IAOO.

Definition at line 32 of file AOObase.h.

00032 { m_associations.clear();}

void Atlfast::AOObase::dump ( const std::string & ) const [virtual, inherited]

dump out debug info

Implements Atlfast::IAOO.

Definition at line 22 of file AOObase.cxx.

00022                                             {
00023     std::cout<<'\n'<<s<<"Associations: "
00024              <<std::setw(6)<<m_associations.size()
00025              <<std::string(53,' ')
00026              <<"AOObase"<<std::endl;
00027     //std::for_each(m_associations.begin(),
00028     //    m_associations.end(),
00029     //    AtlfastDumperObject("Associations", "   ")
00030     //    );
00031   }

The documentation for this class was generated from the following files:

/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastEvent/AtlfastEvent/AODNavigationImp.h
/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastEvent/src/AODNavigationImp.cxx

Generated on Fri Sep 21 13:00:19 2007 for AtlfastEvent by
