#include <AtlfastPoolTest.h>

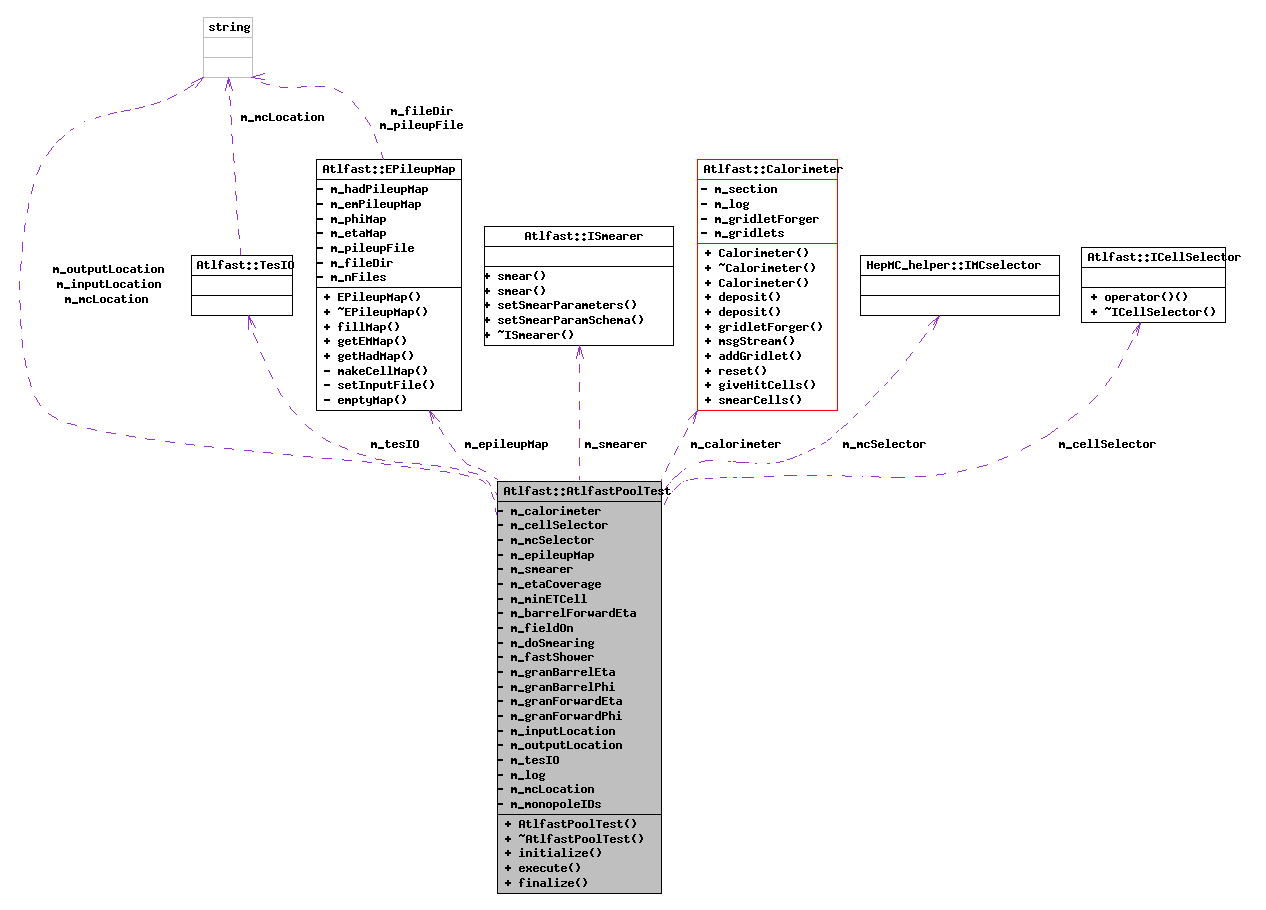

Collaboration diagram for Atlfast::AtlfastPoolTest:
Public Member Functions | |
| AtlfastPoolTest (const std::string &name, ISvcLocator *pSvcLocator) | |
| ~AtlfastPoolTest () | |
| StatusCode | initialize () |
| StatusCode | execute () |
| StatusCode | finalize () |
Private Attributes | |
| Calorimeter * | m_calorimeter |
| ICellSelector * | m_cellSelector |
| HepMC_helper::IMCselector * | m_mcSelector |
| EPileupMap * | m_epileupMap |
| ISmearer * | m_smearer |
| double | m_etaCoverage |
| double | m_minETCell |
| double | m_barrelForwardEta |
| bool | m_fieldOn |
| bool | m_doSmearing |
| warning! not fully tested. Should not be used if JetSmearing == true | |
| bool | m_fastShower |
| flag to control if FastShower is to run | |
| double | m_granBarrelEta |
| double | m_granBarrelPhi |
| double | m_granForwardEta |
| double | m_granForwardPhi |
| std::string | m_inputLocation |
| std::string | m_outputLocation |
| TesIO * | m_tesIO |
| MsgStream | m_log |
| std::string | m_mcLocation |
| std::vector< int > | m_monopoleIDs |
Definition at line 38 of file AtlfastPoolTest.h.
| Atlfast::AtlfastPoolTest::AtlfastPoolTest | ( | const std::string & | name, | |
| ISvcLocator * | pSvcLocator | |||
| ) |
Standard Athena-Algorithm Constructor
This doSmearing is still in experimental phase and should NOT be set to true by any user
WARNING!! DoSmearing should not be changed from default of false
Definition at line 36 of file AtlfastPoolTest.cxx.
00036 : 00037 Algorithm(name,pSvcLocator), 00038 m_calorimeter(0), 00039 m_cellSelector(0), 00040 m_mcSelector(0), 00041 m_epileupMap(0), 00042 m_smearer(0), 00043 m_tesIO(0), 00044 m_log( messageService(), name ) 00045 { 00046 00047 //default paths for entities in the TES 00048 m_inputLocation = "/Event/McEventCollection"; 00049 m_outputLocation = "/Event/AtlfastCells" ; 00050 00051 // default parameters to build the calorimeter 00052 m_etaCoverage = 5.0; 00053 m_minETCell = 0.0; 00054 m_granBarrelEta = 0.1; 00055 m_granBarrelPhi = 0.1; 00056 m_granForwardEta = 0.2; 00057 m_granForwardPhi = 0.2; 00060 m_doSmearing = false; 00061 m_fastShower = false; 00062 00063 declareProperty("InputLocation", m_inputLocation); 00064 declareProperty("OutputLocation", m_outputLocation); 00065 declareProperty("EtaCoverage", m_etaCoverage); 00066 declareProperty("MinETCell", m_minETCell); 00067 declareProperty("GranBarrelEta", m_granBarrelEta); 00068 declareProperty("GranBarrelPhi", m_granBarrelPhi); 00069 declareProperty("GranForwardEta", m_granForwardEta); 00070 declareProperty("GranForwardPhi", m_granForwardPhi); 00072 declareProperty("DoSmearing", m_doSmearing); 00073 declareProperty("FastShower", m_fastShower); 00074 00075 }
| Atlfast::AtlfastPoolTest::~AtlfastPoolTest | ( | ) |
Default destructor
Definition at line 78 of file AtlfastPoolTest.cxx.
00078 { 00079 00080 m_log << MSG::DEBUG << "AtlfastPoolTest destructor starts " << endreq; 00081 00082 if ( m_calorimeter ) delete m_calorimeter; 00083 if ( m_cellSelector ) delete m_cellSelector; 00084 if ( m_epileupMap ) delete m_epileupMap; 00085 if ( m_tesIO ) delete m_tesIO; 00086 if ( m_smearer ) delete m_smearer; 00087 00088 m_log << MSG::DEBUG << "AtlfastPoolTest destructor ends " << endreq; 00089 }
| StatusCode Atlfast::AtlfastPoolTest::initialize | ( | ) |
Standard Athena-Algorithm initialize
NOTE!! Smearing should not be switched on
if we want to perform cell level smearing, must make a CellSmearer and a Energy Pileup map
Definition at line 91 of file AtlfastPoolTest.cxx.
00092 { 00093 00094 00095 //set up objects used to determine particle charge, 00096 // and to select input MC 4-vectors. 00097 m_cellSelector = new CellsAboveThreshold(m_minETCell); 00098 00099 00100 //get the Global Event Data using singleton pattern 00101 GlobalEventData* ged = GlobalEventData::Instance(); 00102 m_fieldOn = ged->fieldOn(); 00103 m_mcSelector = ged -> visibleToCal(); 00104 m_barrelForwardEta = ged -> barrelForwardEta(); 00105 m_mcLocation = ged -> mcLocation(); 00106 m_monopoleIDs = ged -> monopoleIDs(); 00107 00108 if (fabs(m_etaCoverage) < fabs(m_barrelForwardEta) ) { 00109 m_log << MSG::ERROR 00110 << "asked to makecalo with max extent " 00111 << m_etaCoverage 00112 << "but barrel-forward boundary at " 00113 << m_barrelForwardEta << endreq; 00114 return StatusCode::FAILURE; 00115 00116 // m_tesIO = new TesIO(eventDataService()); 00117 m_tesIO = new TesIO(m_mcLocation, ged->justHardScatter()); 00118 00119 } 00120 m_calorimeter = new Calorimeter( 00121 m_log, 00122 m_fastShower, 00123 m_etaCoverage, 00124 m_barrelForwardEta, 00125 m_granBarrelEta, 00126 m_granBarrelPhi, 00127 m_granForwardEta, 00128 m_granForwardPhi 00129 ); 00133 if(m_doSmearing == true){ 00134 m_epileupMap = new EPileupMap(ged->lumi()); 00135 m_smearer = new CellSmearer(ged->randSeed(),m_barrelForwardEta); 00136 }else{ 00137 m_epileupMap = NULL; 00138 m_smearer = NULL; 00139 } 00140 00141 HeaderPrinter hp("Atlfast Cell Maker:", m_log); 00142 00143 hp.add("min Cell ET ", m_minETCell); 00144 hp.add("Magnetic Field is on? ", m_fieldOn); 00145 hp.add("Input Location ", m_inputLocation); 00146 hp.add("Output Location ", m_outputLocation); 00147 hp.add(" DoSmearing ", m_doSmearing); 00148 hp.add(" Run FastShower ", m_fastShower); 00149 hp.add("Calorimeter Geometry: "); 00150 hp.add(" Total Eta Range ", m_etaCoverage); 00151 hp.add(" Barrel Eta Range ", m_barrelForwardEta); 00152 hp.add(" Barrel Eta Granularity ", m_granBarrelEta); 00153 hp.add(" Barrel Phi Granularity ", m_granBarrelPhi); 00154 hp.add(" Forward Eta Granularity", m_granForwardEta); 00155 hp.add(" Forward Phi Granularity", m_granForwardPhi); 00156 hp.print(); 00157 00158 00159 00160 return StatusCode::SUCCESS; 00161 }
| StatusCode Atlfast::AtlfastPoolTest::execute | ( | ) |
Standard Athena-Algorithm execute
randomly fill the map from a text file
deposit energy pileup into EM calorimeter
deposit energy pileup into EM calorimeter
pass pointer to smearer as well, if not NULL, then cells pT is smeared before the ITwoCellCollection is filled
Definition at line 171 of file AtlfastPoolTest.cxx.
00172 { 00173 //............................................. 00174 00175 m_log << MSG::DEBUG << "AtlfastPoolTest execute()" << endreq; 00176 00177 00178 // read MC particles from TES 00179 MCparticleCollection p; 00180 TesIoStat stat = m_tesIO->getMC( p, m_mcSelector ) ; 00181 std::string mess; 00182 mess = stat? "Retrieved MC from TES ":"Failed MC retrieve from TES "; 00183 m_log << MSG::DEBUG << mess << p.size()<<endreq; 00184 00185 ITransportedParticleCollection particlesAtCal; 00186 00187 MCparticleCollectionCIter ip= p.begin(); 00188 for(; ip<p.end(); ++ip){ 00189 00190 // Factory comes back with the relevant TransportedParticle 00191 ITransportedParticle *itp = ITransportedParticleFactory::create(*ip,m_monopoleIDs); 00192 itp->deflect(); 00193 particlesAtCal.push_back(itp); 00194 00195 } 00196 00197 00198 // return stat; 00199 // give to calorimeter (iseq gives the interval [begin,end) 00200 ITransportedParticleCollectionIter fpart = particlesAtCal.begin(); 00201 ITransportedParticleCollectionIter lpart = particlesAtCal.end(); 00202 m_calorimeter->deposit(fpart, lpart); 00203 00204 //Delete the the container of transported particles and its pointers 00205 00206 containerDelete(particlesAtCal.begin(), particlesAtCal.end()); 00207 00208 00209 // Add in the energy pileup 00210 if(m_doSmearing){ 00211 //Smear the cells resolution first 00212 m_calorimeter->smearCells(m_smearer); 00213 m_log << MSG::DEBUG << "Doing Smearing" << endreq; 00215 m_epileupMap->fillMap(); 00216 m_log << MSG::DEBUG 00217 << "Size of EM EPileup vector: " 00218 << m_epileupMap->getEMMap()->size() 00219 << endreq; 00220 std::vector<Atlfast::EPileupDeposit*>::iterator fdep = 00221 m_epileupMap->getEMMap()->begin(); 00222 std::vector<Atlfast::EPileupDeposit*>::iterator ldep = 00223 m_epileupMap->getEMMap()->end(); 00225 m_calorimeter->deposit(fdep, ldep); 00226 m_log << MSG::DEBUG << "ECAL pileup deposited" << endreq; 00227 m_log << MSG::DEBUG << "Size of HAD EPileup vector: " 00228 << m_epileupMap->getHadMap()->size() 00229 << endreq; 00230 fdep = m_epileupMap->getHadMap()->begin(); 00231 ldep = m_epileupMap->getHadMap()->end(); 00233 m_calorimeter->deposit(fdep, ldep); 00234 m_log << MSG::DEBUG << "HCAL pileup deposited" << endreq; 00235 } 00236 00237 m_log << MSG::DEBUG << "deposit" << endreq; 00238 00239 // ask for Cells passing selection criteria of m_cellSelector (=Et). 00240 //************************ 00241 //this worked 23/12 PS 00242 ITwoCptCellCollection* cells = new ITwoCptCellCollection; 00243 //************************ 00246 m_calorimeter->giveHitCells(m_cellSelector, cells); 00247 m_log << MSG::DEBUG << "hit cells retrieved, " << cells->size() 00248 << " cells were hit this event " << endreq; 00249 00250 // return stat; 00251 00252 // finished with the calorimeter 00253 m_calorimeter->reset(); 00254 m_log << MSG::DEBUG << "calorimeter reset" << endreq; 00255 // return stat; 00256 // return stat; 00257 00258 // then store and return 00259 stat = m_tesIO->store(cells, m_outputLocation ); 00260 mess = stat? " Stored cells to TES":" Failed store cells to TES"; 00261 m_log << MSG::DEBUG << mess << endreq; 00262 00263 return stat; 00264 }
| StatusCode Atlfast::AtlfastPoolTest::finalize | ( | ) |
Standard Athena-Algorithm finalize
Definition at line 163 of file AtlfastPoolTest.cxx.
00164 { 00165 00166 m_log<<MSG::INFO<<"Finalizing"<<endreq; 00167 return StatusCode::SUCCESS; 00168 }
Definition at line 56 of file AtlfastPoolTest.h.
Definition at line 57 of file AtlfastPoolTest.h.
Definition at line 58 of file AtlfastPoolTest.h.
EPileupMap* Atlfast::AtlfastPoolTest::m_epileupMap [private] |
EPileupMap contains the pileup energy distribution to be put into calorimeter
Definition at line 60 of file AtlfastPoolTest.h.
ISmearer* Atlfast::AtlfastPoolTest::m_smearer [private] |
CellSmearer, smears cells pt before put into CellCollection
Definition at line 62 of file AtlfastPoolTest.h.
double Atlfast::AtlfastPoolTest::m_etaCoverage [private] |
Definition at line 65 of file AtlfastPoolTest.h.
double Atlfast::AtlfastPoolTest::m_minETCell [private] |
Definition at line 66 of file AtlfastPoolTest.h.
double Atlfast::AtlfastPoolTest::m_barrelForwardEta [private] |
Definition at line 67 of file AtlfastPoolTest.h.
bool Atlfast::AtlfastPoolTest::m_fieldOn [private] |
Definition at line 68 of file AtlfastPoolTest.h.
bool Atlfast::AtlfastPoolTest::m_doSmearing [private] |
warning! not fully tested. Should not be used if JetSmearing == true
switch on cell smearing
Definition at line 71 of file AtlfastPoolTest.h.
bool Atlfast::AtlfastPoolTest::m_fastShower [private] |
double Atlfast::AtlfastPoolTest::m_granBarrelEta [private] |
Definition at line 77 of file AtlfastPoolTest.h.
double Atlfast::AtlfastPoolTest::m_granBarrelPhi [private] |
Definition at line 78 of file AtlfastPoolTest.h.
double Atlfast::AtlfastPoolTest::m_granForwardEta [private] |
Definition at line 79 of file AtlfastPoolTest.h.
double Atlfast::AtlfastPoolTest::m_granForwardPhi [private] |
Definition at line 80 of file AtlfastPoolTest.h.
std::string Atlfast::AtlfastPoolTest::m_inputLocation [private] |
Definition at line 83 of file AtlfastPoolTest.h.
std::string Atlfast::AtlfastPoolTest::m_outputLocation [private] |
Definition at line 84 of file AtlfastPoolTest.h.
TesIO* Atlfast::AtlfastPoolTest::m_tesIO [private] |
Definition at line 86 of file AtlfastPoolTest.h.
MsgStream Atlfast::AtlfastPoolTest::m_log [private] |
Definition at line 88 of file AtlfastPoolTest.h.
std::string Atlfast::AtlfastPoolTest::m_mcLocation [private] |
Definition at line 91 of file AtlfastPoolTest.h.
std::vector<int> Atlfast::AtlfastPoolTest::m_monopoleIDs [private] |
Definition at line 94 of file AtlfastPoolTest.h.
