Atlfast::ICluster Class Reference

#include <ICluster.h>

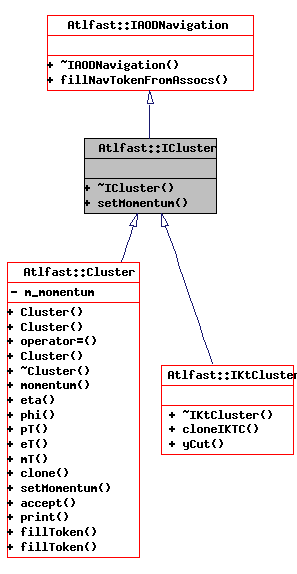

Inheritance diagram for Atlfast::ICluster:

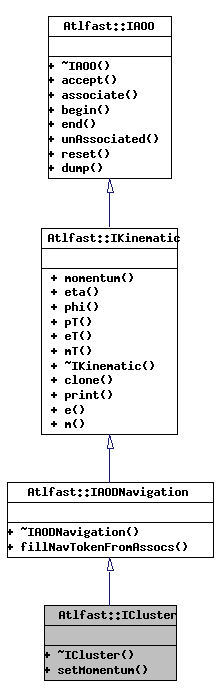

[legend]Collaboration diagram for Atlfast::ICluster:

[legend]List of all members.

Public Member Functions
virtual	~ICluster ()
	destructor
virtual void	setMomentum (const HepLorentzVector &)=0
virtual void	fillNavTokenFromAssocs (INavigationToken &) const=0
virtual HepLorentzVector	momentum () const=0
virtual double	eta () const=0
virtual double	phi () const=0
virtual double	pT () const=0
virtual double	eT () const=0
virtual double	mT () const=0
virtual IKinematic *	clone () const=0
virtual void	print (const std::string &, std::string s="") const =0
virtual double	e () const
virtual double	m () const
virtual void	accept (IAOOvisitor *) const =0
	to be implemented by the concrete classes
virtual void	associate (const IAOO *otherEntity)=0
	store any object with IAOO above it the inheritance heirarchy
virtual std::vector< const IAOO * >::const_iterator	begin () const=0
	iterators for the store.
virtual std::vector< const IAOO * >::const_iterator	end () const=0
virtual bool	unAssociated () const=0
	A quick way to find out whether there are any associations at a ll.
virtual void	reset ()=0
	zero the container
virtual void	dump (const std::string &s) const =0
	dump out debug info

---

Detailed Description

Definition at line 21 of file ICluster.h.

---

Constructor & Destructor Documentation

virtual Atlfast::ICluster::~ICluster

(

)

[inline, virtual]

destructor

Definition at line 24 of file ICluster.h.

{ }

---

Member Function Documentation

virtual void Atlfast::ICluster::setMomentum

(

const HepLorentzVector &

)

[pure virtual]

Implemented in Atlfast::Cluster.

virtual void Atlfast::IAODNavigation::fillNavTokenFromAssocs

(

INavigationToken &

)

const [pure virtual, inherited]

Implemented in Atlfast::AODNavigationImp.

virtual HepLorentzVector Atlfast::IKinematic::momentum

(

)

const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::eta

(

)

const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::phi

(

)

const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::pT

(

)

const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::eT

(

)

const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual double Atlfast::IKinematic::mT

(

)

const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, and Atlfast::Track.

virtual IKinematic* Atlfast::IKinematic::clone

(

)

const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, Atlfast::Track, and Atlfast::TwoCptCell.

virtual void Atlfast::IKinematic::print	(	const std::string &	,
		std::string	s = ""
	)			const [pure virtual, inherited]

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::IKinematicBase, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::Track, and Atlfast::TwoCptCell.

virtual double Atlfast::IKinematic::e

(

)

const [inline, virtual, inherited]

Reimplemented in Atlfast::Jet.

Definition at line 75 of file IKinematic.h.

{return this->momentum().e();}

virtual double Atlfast::IKinematic::m

(

)

const [inline, virtual, inherited]

Definition at line 76 of file IKinematic.h.

{return this->momentum().m();}

virtual void Atlfast::IAOO::accept

(

IAOOvisitor *

)

const [pure virtual, inherited]

to be implemented by the concrete classes

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, Atlfast::Track, and Atlfast::TwoCptCell.

virtual void Atlfast::IAOO::associate

(

const IAOO *

otherEntity

)

[pure virtual, inherited]

store any object with IAOO above it the inheritance heirarchy

Implemented in Atlfast::AOObase.

virtual std::vector<const IAOO*>::const_iterator Atlfast::IAOO::begin

(

)

const [pure virtual, inherited]

iterators for the store.

Implemented in Atlfast::AOObase.

virtual std::vector<const IAOO*>::const_iterator Atlfast::IAOO::end

(

)

const [pure virtual, inherited]

Implemented in Atlfast::AOObase.

virtual bool Atlfast::IAOO::unAssociated

(

)

const [pure virtual, inherited]

A quick way to find out whether there are any associations at a ll.

Implemented in Atlfast::AOObase.

virtual void Atlfast::IAOO::reset

(

)

[pure virtual, inherited]

zero the container

Implemented in Atlfast::AOObase.

virtual void Atlfast::IAOO::dump

(

const std::string &

s

)

const [pure virtual, inherited]

dump out debug info

Implemented in Atlfast::AOObase.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastEvent/AtlfastEvent/ICluster.h

---
